View of the OLEX Scene parameters

Click on the code to download the scene parameters files. The files can be incorporated into dummy drawing styles which change only scene parameters or applied to current scene using the "Load" operation accessible from the "Scene Params" dialog.
To hide or change gradient click on "Gradient" button in the "Scene Params" dialog and unselect "Enabled" checkbox.
To use the Drawing Style containing shown element colours download styles.set file to your computer and use the Drawing Styles -> Import command for "3Lights+Element Colors" style. The style changes colours of some elements and incorporates scene parameters 13 (see below) .

Code	Material Props	Color Material	Light Mode: Ambient Color
Three uniform non-directional lights

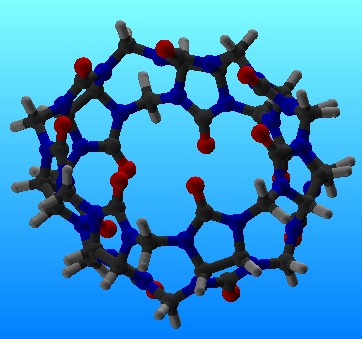

1	none	Ambient & Diffuse	black

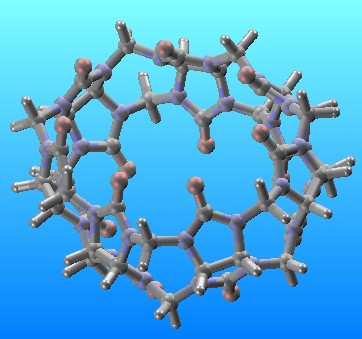

3		Spectacular
5		Emission

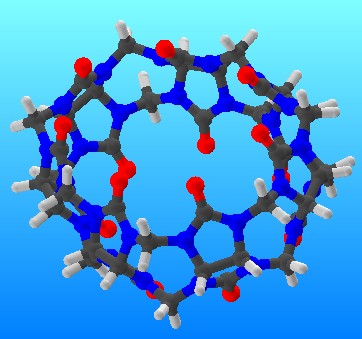

6		Ambient & Diffuse	grey

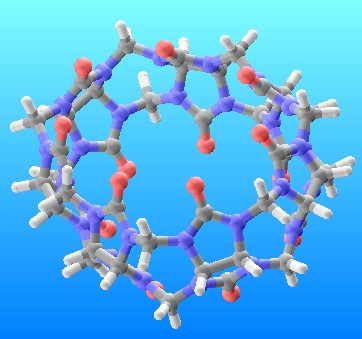

7		Ambient

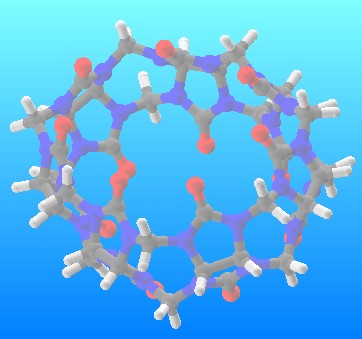

9		Diffuse

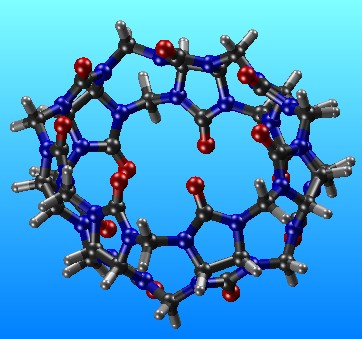

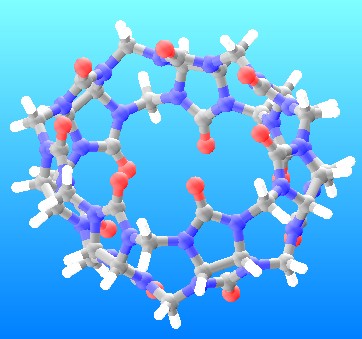

11	Specular: white Shininess: 36	Ambient & Diffuse	black

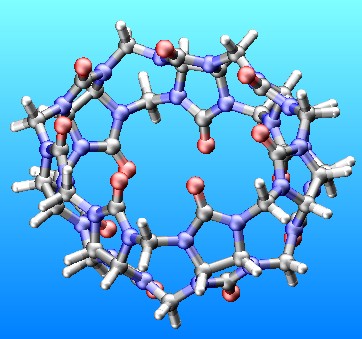

12	Specular: white Shininess: 6	Ambient & Diffuse	black

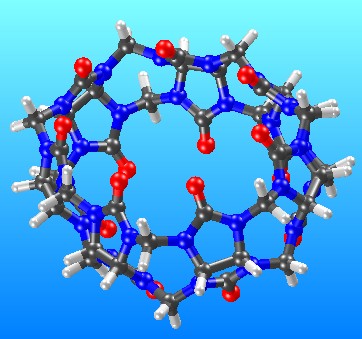

13	Specular: white Shininess: 36	Ambient & Diffuse	grey

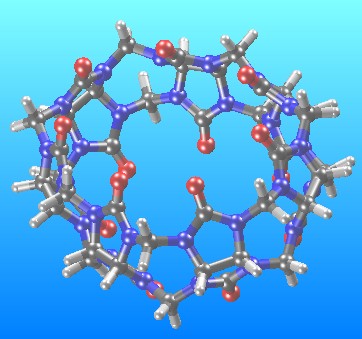

14	Specular: white Shininess: 36 Emission: RGB(79,79,79)	Ambient & Diffuse	black
15	Specular: white Shininess: 36 Emission: RGB(79,0,0)	Ambient & Diffuse	black

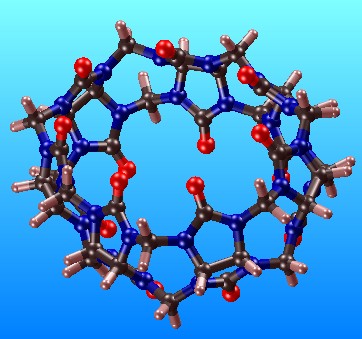

16	Specular: white Shininess: 36	Ambient & Diffuse	RGB(79,0,0)
Three uniform non-directional lights + one directional

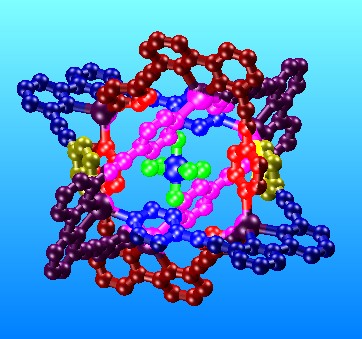

20	style 11 plus one extra light
